E Glass 7628 Plain Woven Fiberglass Cloth Fiber

Short Description:

Weight:200 ± 10gsm
Surface Treatment:Silicon Coated
Width:1050-1270mm
Weave Type:Plain Woven
Yarn Type:E-glass
Unit weight:200-800g/m2
Thickness:0.18 ±0.01mm
Delivery time:7 days
Lol:0.12±0.04%

Acceptance: OEM/ODM, Wholesale, Trade, Payment: T/T, L/C, PayPal Our factory has been producing Fiberglass since 1999.We want to be your best choice and your absolutely reliable business partner. Please feel free to send your questions and orders.

Send email to us Phone Whatsapp

Product Detail

Product Tags

Product Display

Product Application

fiberglass cloth 200gsm fiber glass woven roving is made of e-glass direct roving by plain weaving style,widely applied to FRP boat,surboard,tank,swimming pool,automobile,sailboard,panel as well as other FRP products.

1. Fiberglass cloth for various coating processes (suitable for PTFE, silicone, PVC, PVA, and acrylic coatings)
2. Composite materials (aviation composite materials, sports equipment cloth, imitation carbon fifiber decorative cloth,electroplating cloth, etc.)
3. Architecture materials (fifilm base cloth, grade A soft fifilm ceiling, fifiberglass wallpaper, fifiberglass curtain and projection screen, etc.)
4. High temperature insulation materials, fifire protection, protection and other aspects (high silicon oxygen, aramid fifiber, kevlar fabric, etc.)
5. Others (cloth for fifishing rod, cloth for friction material, electronic yarn, electronic cloth, etc.

Specification and Physical Properties

Model	Texture	Densit （/cm）	Width （/cm）	Weight （g/㎡）	Thickness （mm）	Temperature
2523	Plain woven	12*8	100-216	400	0.35	550℃
KD135	Plain woven	10*9	100	135	0.14	550℃
KD200	Plain woven	7.5*7	100	200	0.2	550℃
KD280	Plain woven	11*9	100-216	280	0.21	550℃
KD330	Plain woven	15*9	100-216	335	0.28	550℃
KD480	Plain woven	10*7	100-216	480	0.36	550℃
KD580	Plain woven	8*6	100-216	580	0.48	550℃
KD720	Plain woven	8*5	100-216	720	0.58	550℃
CS100	Plain woven	17*13	105	100	0.1	550℃
CS140	Plain woven	12*9	100-152	140	0.14	550℃
CS170	Plain woven	9*8	102	170	0.17	550℃
CS260	Plain woven	12*10	129	220	0.26	550℃
CS950	Plain woven	12*5	100	950	0.95	550℃
3732	Twill woven	18*13	100-180	430	0.43	550℃
3784	Satin woven	18*12	100-180	840	0.8	550℃
3786	Satin woven	18*13	100-180	1300	1.2	550℃
3788	Satin woven	18*13	100-180	1700	1.7	550℃
CS270	Satin woven	12*11	100-150	270	0.27	550℃
CS840	Satin woven	10*10	100-152	200	0.8	550℃
KD660	Twill woven /Satin woven	1813 /1411	100-150	660	0.65	550℃
GK800	Plain woven	18*13	1002	800	0.8	550℃
GK1000	Plain woven	18*13	102	1000	1	550℃
Wire cloth	Plain woven	14.4*4.5	100-127	1100	1	550℃

Product properties:
1. Temperature resistance: it can continuously work under -70 ~ 260°C
2. Weatherability: resistant to ozone, oxygen, sunlight and aging, long using life up to 10 years
3. Good electric insulator, dielectric constant 3 - 3.2, breaking down voltage between 20 - 50kV/mm

Packing

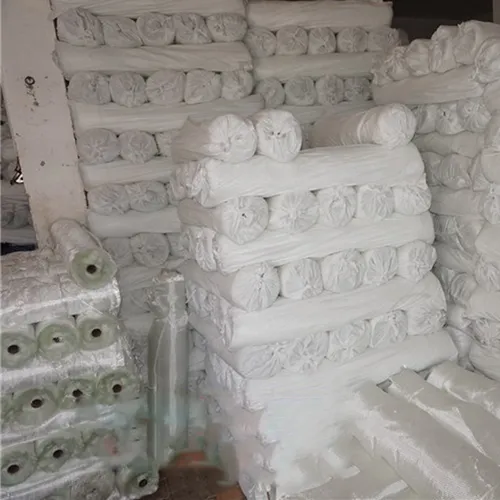

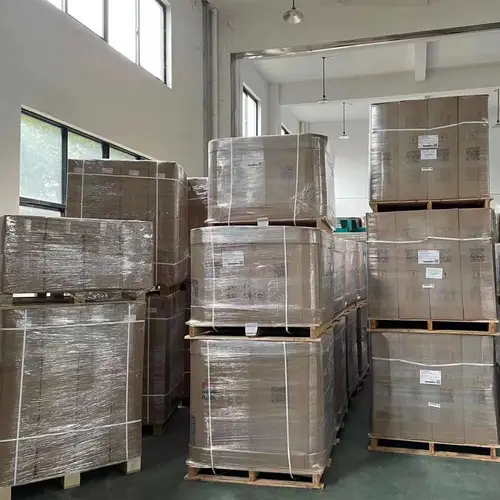

The fiberglass cloth inner packed with paper core,out with PE film,can vertical or horizontal put into pallet,also can bulk loading into container.

Product Storage and Transportation

Unless otherwise specified, the fiberglass cloth products should be stored in a dry, cool and moisture proof area. Best used within 12 months after production date. The fiberglass cloth should remain in their original packaging until just prior to use. The fiberglass cloth products are suitable for delivery by the way of ship, train, or truck.
