Fiberglass Nano Aerogel blanket High Temperature Resistant Cotton Silica Thermal Insulation blanket Fireproof Aluminum Foil

Short Description:

Product name:Nano Aerogel blanket
Thermal conductivity W/(m.k):0.020(25℃),0.036(300℃)
Application:Thermal Insulation
Density (kg/m3):160-240
Hydrophobicity rate (%) :99.9
Compression rebound rate (%) :96
Permanent change rate of heating line:0.3 %
Tensile strength (kpa):1409 (landscape orientation),366 (portrait orientation)

Our factory has been producing fiberglass since 1999.
Acceptance: OEM/ODM, Wholesale, Trade,
Payment: T/T, L/C, PayPal
Our factory has been producing Fiberglass since 1999.We want to be your best choice and your absolutely reliable business partner.
Please feel free to send your questions and orders.


Product Detail

Product Tags

Product Display

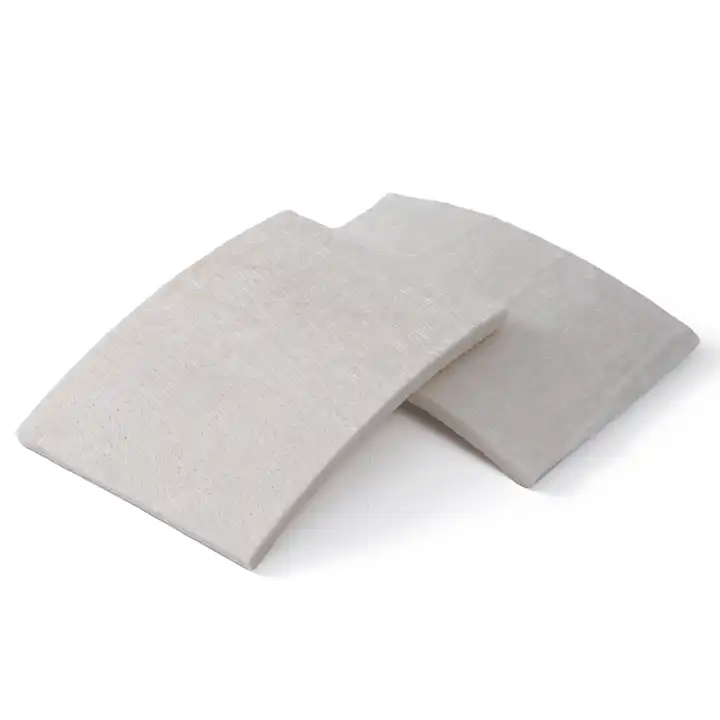

aerogel fabric felt

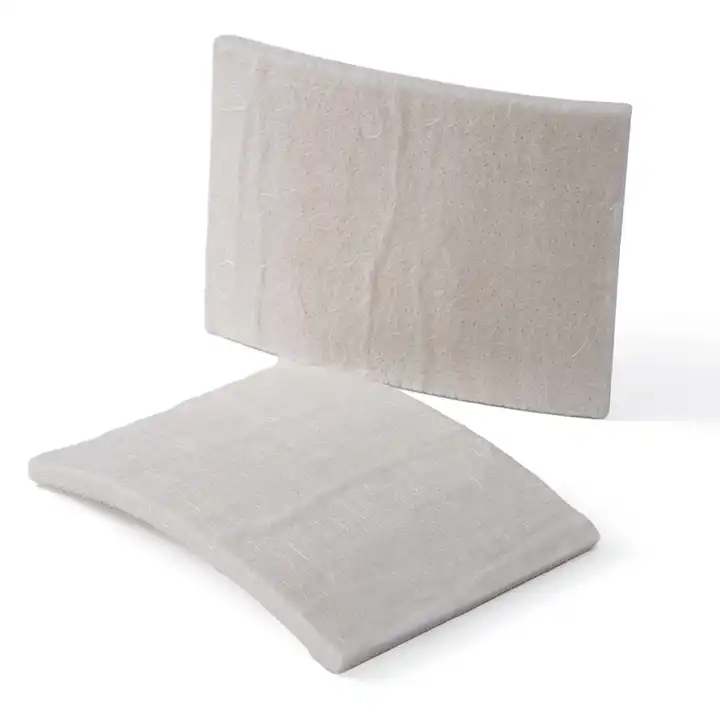

aerogel fabric blanket

Product Application

Nano aerogel blanket is a new material with high pore rate, low density, and excellent insulation performance. Processes.its pore rate is very high, it can absorb a large amount of liquid and gas, and has excellent thermal insulation, fire resistance and acoustic performance. The main component of nano aerogel blanket is silicon or other oxides. The preparation methods include supercritical drying, solitary-gel method. These preparation methods can control the pore size and pores of the gas gel, thereby regulating their performance, such as adsorption, insulation, insulation, damping, filtering, etc.

Specification and Physical Properties

Brand
Property
Nano aerogel blanket
Thermal conductivity W/(m.k) 0.020(25℃),0.036(300℃)
Maximum service temperature (℃) 650
Density (kg/m³) 160-240
Hydrophobicity rate (%) 99.9
Combustion performance grade A
Compression rebound rate (%) 96
Permanent change rate of heating line (%) - 0.3
Tensile strength (kpa) 1409 (landscape orientation),366 (portrait orientation)
Surface property Bulk drain
Colour White/grey blue
Size(mm) Wide:1500±5, Thickness:5/10/15 (customizable 3/6)

Nano aerogel blanket is made of nano-silica or metal aerogel as the main material, through a special process with carbon fibre or ceramic glass fibre cotton or pre-oxidized fibre felt composite and become a flexible thermal insulation felt. Characterised by low thermal conductivity and certain tensile and compressive strength, nano aerogel blanket is a new type of pipe insulation material.

Packing

PVC bag or shrink packaging as the inner packing then into cartons or pallets, packing in cartons or in pallets or as requested, conventional packing 1m*100m/rolls, 4 rolls/cartons, 1300 rolls in a 20ft, 2700 rolls in a 40ft. The product is suitable for delivery by the way of ship, train, or truck.

Product Storage and Transportation

Unless otherwise specified, the nano aerogel blanket products should be stored in a dry, cool and moisture proof area. Best used within 12 months after production date. They should remain in their original packaging until just prior to use. The products are suitable for delivery by the way of ship, train, or truck.
